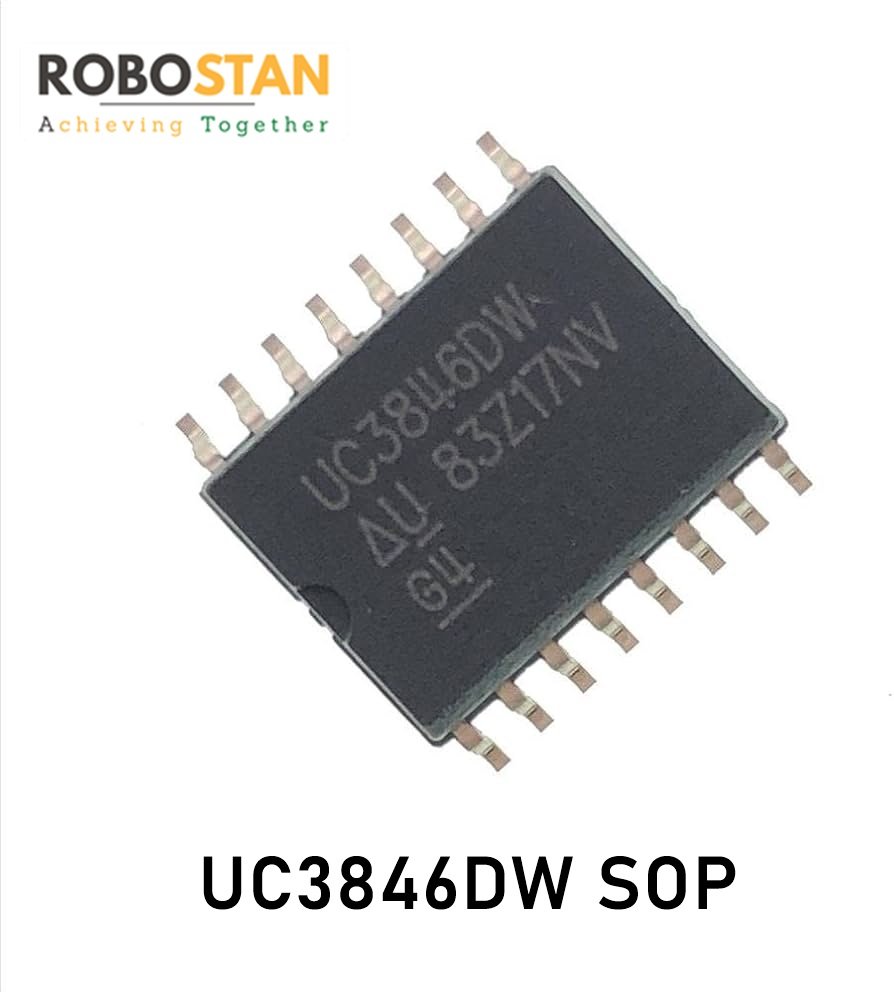

UC3846DW SOP
UC3846DW SOP
UC3846DW SOP
The UC3846DW SOP is a pulse-width modulation controller IC for high-frequency power conversion. Its dual-output control, synchronization capability, overcurrent protection, adjustable dead-time control, and low start-up current make it suitable for SMPS, motor drives, and efficient power-management systems.
Technical Specifications
| Device Type | PWM Controller IC |
| Operating Voltage | 7V–40V |
| Operating Frequency | Up to 500kHz |
| Output Type | Dual Output |
| Start-up Current | 0.2mA typical |
| Protection Features | Overcurrent, Thermal Shutdown |
| Package Type | SOP-16 |
Pickup available at Robostan
Usually ready in 24 hours
UC3846DW SOP
The UC3846DW SOP is a pulse-width modulation controller IC for high-frequency power conversion. Its dual-output control, synchronization capability, overcurrent protection, adjustable dead-time control, and low start-up current make it suitable for SMPS, motor drives, and efficient power-management systems.
Technical Specifications
| Device Type | PWM Controller IC |
| Operating Voltage | 7V–40V |
| Operating Frequency | Up to 500kHz |
| Output Type | Dual Output |
| Start-up Current | 0.2mA typical |
| Protection Features | Overcurrent, Thermal Shutdown |
| Package Type | SOP-16 |
