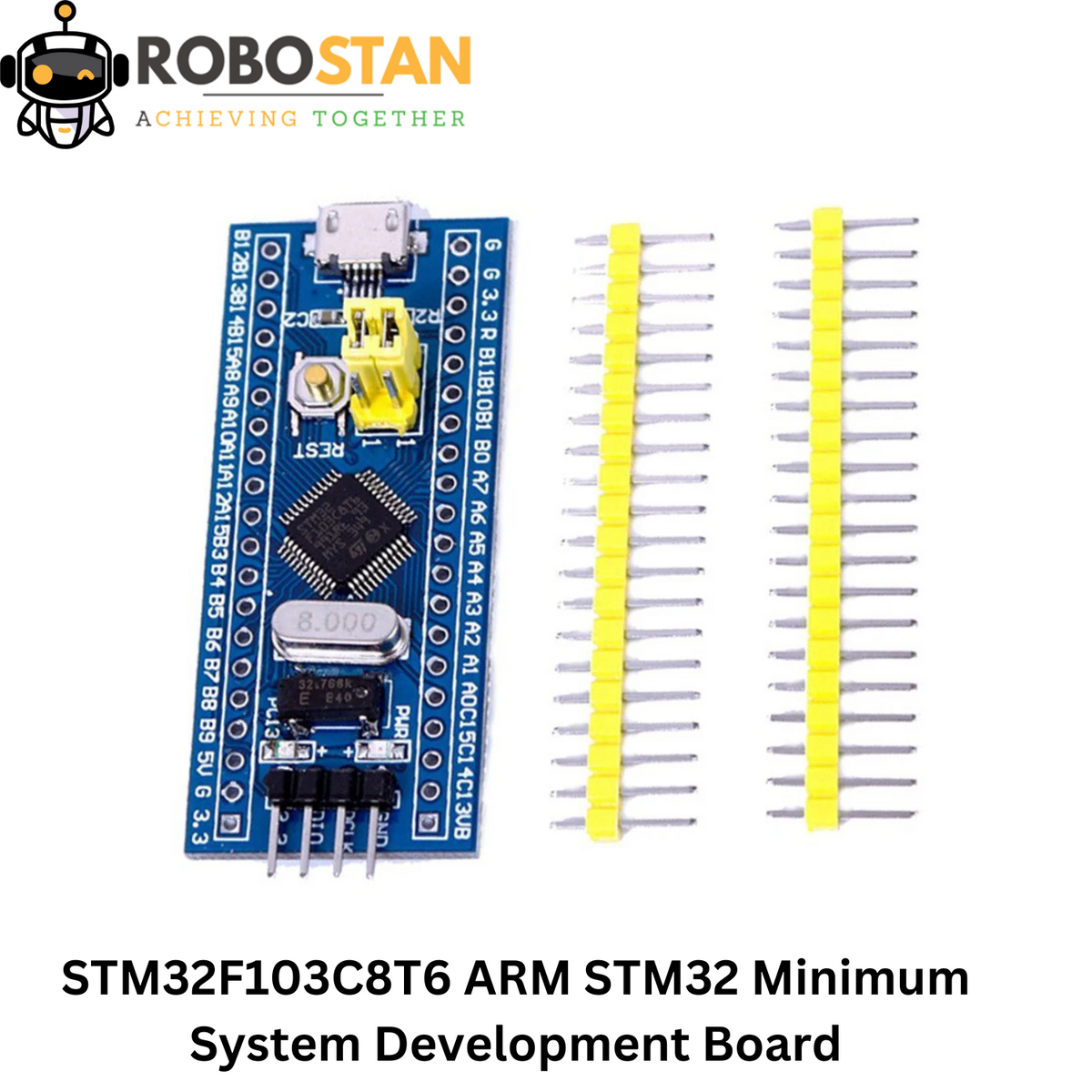

STM32F103C8T6 ARM STM32 Minimum System Development Board
STM32F103C8T6 ARM STM32 Mini development board
The STM32F103C8T6 ARM STM32 Mini development board For Arduin0 is low cost Minimum System Development Board for ARM Micro-controller – STM32F103C8T6. Board is suitable for learners that want to learn STM32 micro-controller with ARM Coretex-M3 32-bit core.
The STM32F103C8T6 ARM STM32 Development Board, also known as the Blue Pill, is a compact and powerful ARM Cortex-M3 based microcontroller board. It is widely used for embedded systems, IoT projects, robotics, and industrial automation due to its high processing power, low energy consumption, and rich set of peripherals.
This board features an STM32F103C8T6 ARM STM32 microcontroller, operating at 72MHz, with 64KB Flash memory and 20KB RAM. It supports multiple communication interfaces such as I2C, SPI, UART, and USB, making it a great alternative to Arduino boards for advanced applications. The board is compatible with Arduino IDE, STM32Cube, and Keil, providing flexibility for developers.
Price and Availability:
Price: Contact for Pricing
Availability: In Stock
Order Now at Robostan.pk!
Technical Specifications:
| Feature | Specification |
|---|---|
| Microcontroller | STM32F103C8T6 (ARM Cortex-M3) |
| Clock Speed | 72 MHz |
| Flash Memory | 64KB |
| RAM | 20KB |
| Operating Voltage | 3.3V (5V Tolerant I/O) |
| GPIO Pins | 37 (Multipurpose) |
| Communication Interfaces | UART, SPI, I2C, USB, CAN |
| ADC Channels | 10-bit ADC (12 Channels) |
| PWM Outputs | Multiple PWM Pins |
| Programming Support | ST-Link, USB-TTL |
| Dimensions | 5.3cm x 2.2cm |
