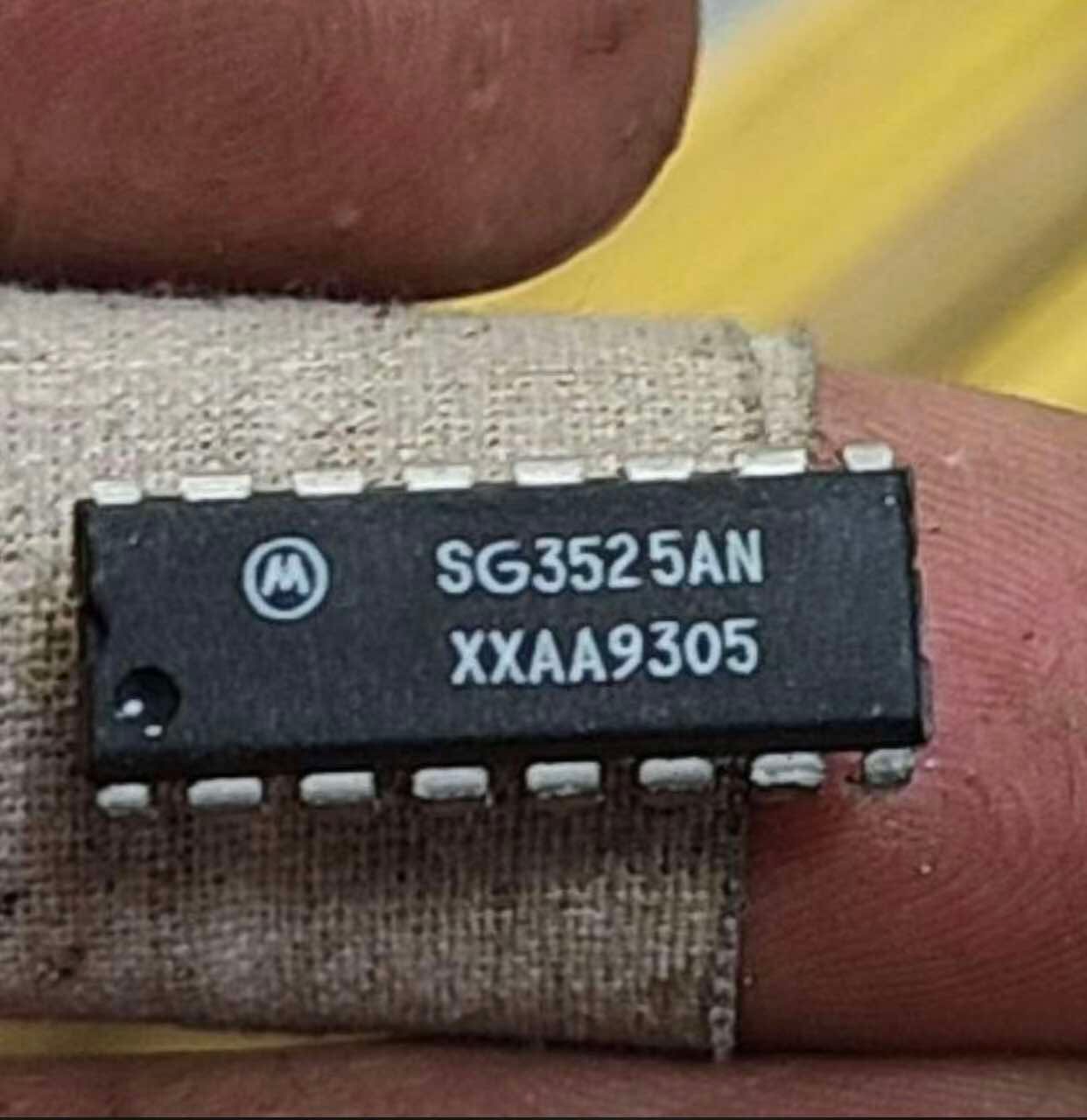

The SG3525AN by Motorola (Original) is a high-performance Pulse Width Modulation (PWM) controller IC designed for a wide range of power control applications, including switch mode power supplies (SMPS), inverters, and DC-DC converters. Featuring built-in soft start, under-voltage lockout, adjustable dead time, and a totem pole output stage, it delivers maximum efficiency in power regulation systems.
This IC is ideal for engineers, hobbyists, and developers working on custom power control designs or solar inverters, thanks to its robust protection features and precise PWM signal control.
Key Features:
- ✅ Dual Output PWM Controller for symmetrical drive
- ✅ Built-in Soft Start & Shutdown circuitry
- ✅ Adjustable Oscillator for flexible frequency control
- ✅ Undervoltage Lockout (UVLO) for safe operation
- ✅ Totem-Pole Output Stage capable of driving power transistors directly
Technical Specifications:
| Feature | Details |
|---|---|
| Model | SG3525AN |
| Manufacturer | Motorola (Original) |
| Operating Voltage | 8V – 35V |
| Output Drive Current | ±400 mA |
| Oscillator Frequency | Adjustable up to 400 kHz |
| Output Type | Push-Pull / Single-Ended |
| UVLO (Under Voltage Lockout) | Yes |
| Soft Start | Internal |
| Package Type | DIP-16 |
