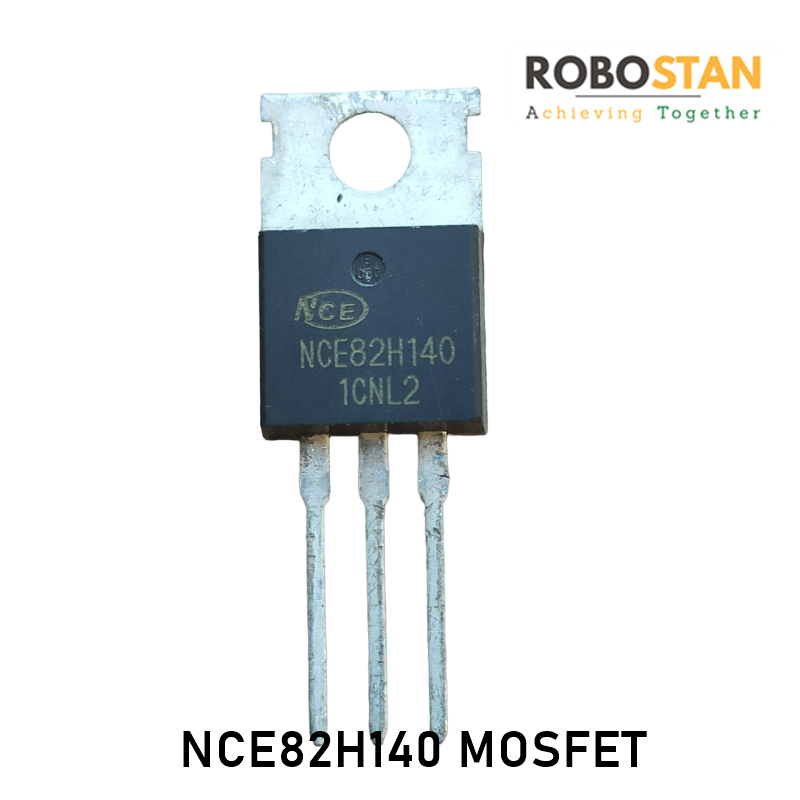

NCE82H140 MOSFET
NCE82H140 MOSFET
The NCE82H140 MOSFET is a high-performance, low Rds(on) power transistor designed for demanding power management and switching applications. With a voltage rating of 140V and a continuous current capacity of up to 82A, this MOSFET delivers excellent efficiency and reliability. Its advanced trench technology helps minimize power loss.
Built in a TO-220 package, the NCE82H140 offers strong thermal performance and durability for power-electronics systems.
Technical Specifications
| Type | N-Channel MOSFET |
| Drain-Source Voltage (Vds) | 140V |
| Continuous Drain Current (Id) | 82A |
| Rds(on) | ≤ 0.0045Ω |
| Package | TO-220 |
| Applications | Power inverters, motor control, battery management systems |
Why Choose Robostan?
- High-quality components
- Competitive prices
- Fast nationwide delivery in Pakistan
Pickup available at Robostan
Usually ready in 24 hours
The NCE82H140 MOSFET is a high-performance, low Rds(on) power transistor designed for demanding power management and switching applications. With a voltage rating of 140V and a continuous current capacity of up to 82A, this MOSFET delivers excellent efficiency and reliability. Its advanced trench technology helps minimize power loss.
Built in a TO-220 package, the NCE82H140 offers strong thermal performance and durability for power-electronics systems.
Technical Specifications
| Type | N-Channel MOSFET |
| Drain-Source Voltage (Vds) | 140V |
| Continuous Drain Current (Id) | 82A |
| Rds(on) | ≤ 0.0045Ω |
| Package | TO-220 |
| Applications | Power inverters, motor control, battery management systems |
