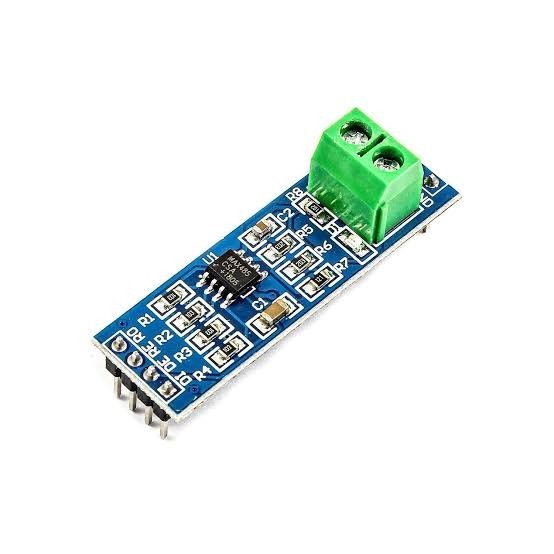

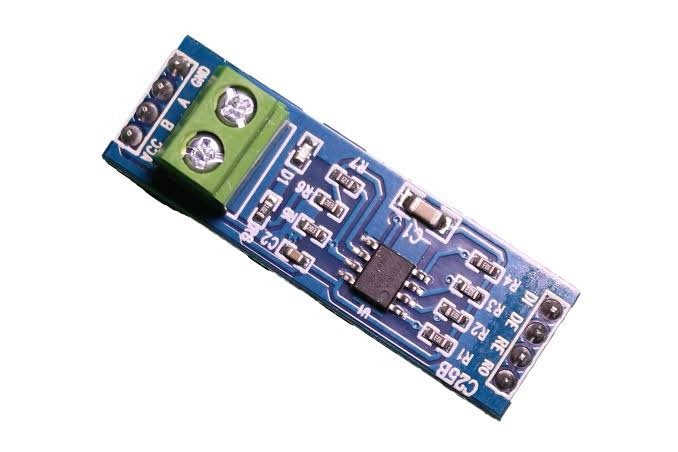

MAX485 TTL TO RS485 Transceiver Module
Rs.100.00
Skip to product information
MAX485 TTL to RS485 Transceiver Module
MAX485 TTL TO RS485 Transceiver Module
The MAX485 TTL to RS485 Transceiver Module converts TTL logic signals to RS485 differential signals for reliable long-distance communication in embedded and industrial systems.
Key Features
- TTL to RS485 conversion
- 3.3V to 5V operating voltage
- Low power consumption
- Full-duplex communication
- Long-distance, noise-resistant data transmission
Applications
- Industrial automation
- Data acquisition
- Smart-home systems
- Embedded systems
- Robotics
Package Includes
- 1 x MAX485 TTL to RS485 Transceiver Module
- 1 x Jumper Wires
Technical Specifications
| Model | MAX485 TTL to RS485 Transceiver |
| Communication Type | Full-Duplex RS485/TTL |
| Operating Voltage | 3.3V to 5V |
| Max Transmission Distance | 1200 meters (at 100kbps) |
| Baud Rate | Up to 1 Mbps |
| Current Consumption | 120mA max |
| Dimensions | 35mm x 15mm |
Rs.100.00
Pickup available at Robostan
Usually ready in 24 hours
MAX485 TTL to RS485 Transceiver Module
The MAX485 TTL to RS485 Transceiver Module converts TTL logic signals to RS485 differential signals for reliable long-distance communication in embedded and industrial systems.
Key Features
- TTL to RS485 conversion
- 3.3V to 5V operating voltage
- Low power consumption
- Full-duplex communication
- Long-distance, noise-resistant data transmission
Applications
- Industrial automation
- Data acquisition
- Smart-home systems
- Embedded systems
- Robotics
Package Includes
- 1 x MAX485 TTL to RS485 Transceiver Module
- 1 x Jumper Wires
Technical Specifications
| Model | MAX485 TTL to RS485 Transceiver |
| Communication Type | Full-Duplex RS485/TTL |
| Operating Voltage | 3.3V to 5V |
| Max Transmission Distance | 1200 meters (at 100kbps) |
| Baud Rate | Up to 1 Mbps |
| Current Consumption | 120mA max |
| Dimensions | 35mm x 15mm |
