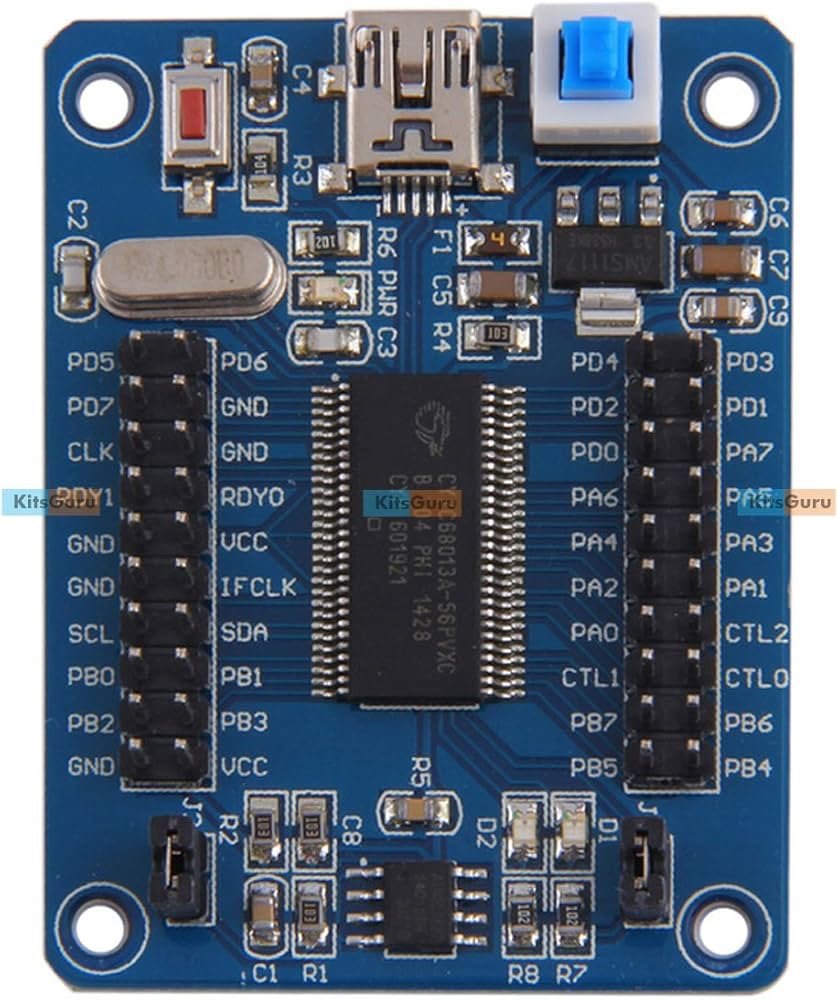

Logic Analyzer EEPROM Develop Board Module
Logic Analyzer EEPROM Develop Board Module
The Logic Analyzer EEPROM Development Board Module is a tool for debugging and analyzing digital signals in embedded systems. It combines EEPROM data storage with logic-analyzer functionality for circuit development and troubleshooting.
Key Features
- Integrated EEPROM
- Logic analyzer functionality
- Compact design
- Multiple protocol support
- High-speed data capture
Applications
- Embedded-system development
- Signal analysis
- Prototyping
- Educational use
- Data logging
Package Includes
- 1 x Logic Analyzer EEPROM Development Board Module
- 1 x Data Cable
- 1 x User Manual
Technical Specifications
| Module Type | Logic Analyzer with EEPROM |
| Logic Channels | 8 Channels (Typical) |
| Maximum Sampling Rate | 200MHz |
| Input Voltage | 3.3V to 5V |
| EEPROM Capacity | 512KB (Typical) |
| Interface | I2C, SPI, UART, GPIO |
| Dimensions | 60mm x 50mm x 15mm |
| Weight | 30g |
