HCSR501 PIR Motion Sensor Module
Rs.200.00
Skip to product information
HCSR501 PIR Motion Sensor Module

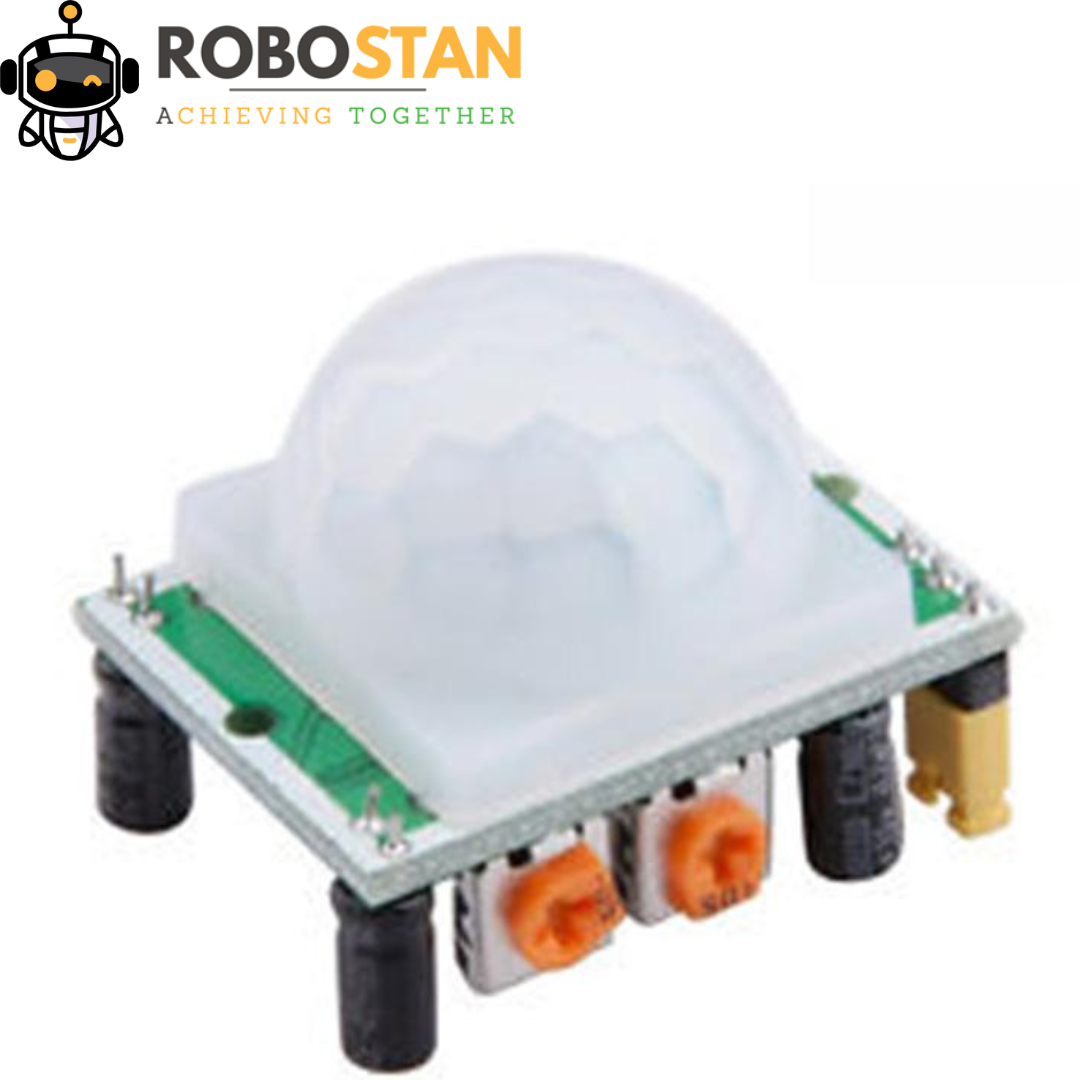

HC-SR501 PIR Motion Sensor Module
The HC-SR501 PIR Motion Sensor Module is a popular motion detection module that uses passive infrared (PIR) technology to detect human or animal presence. Its versatility, reliability, and ease of use make it an essential component for security systems, automatic lighting, and DIY projects.
Key Features
- Wide Operating Voltage: Compatible with 4.5V to 20V power supplies.
- Adjustable Sensitivity: Fine-tune the detection range up to 7 meters.
- Adjustable Delay Time: Configure the delay time from 5 seconds to 5 minutes.
- Wide Detection Angle: Covers up to 120° for broader coverage.
- Compact Design: Easy to integrate into any project.
- Low Power Consumption: Optimized for energy-efficient applications.
Applications
- Security Systems: Motion-triggered alarms and cameras.
- Automatic Lighting: Lights on/off based on motion detection.
- Smart Home Projects: Automated doorbells, curtains, and other devices.
- DIY Electronics: Ideal for Arduino, Raspberry Pi, and IoT projects.
Package Includes
- 1 x HC-SR501 PIR Motion Sensor Module
Why Buy from Robostan.pk?
- Original Products: High-quality PIR motion sensors.
- Affordable Pricing: Competitive prices across Pakistan.
- Fast Shipping: Reliable delivery nationwide.
- Expert Support: Guidance for setup and troubleshooting.
Technical Specifications
| Operating Voltage | 4.5V - 20V |
| Detection Distance | 3 - 7 meters (adjustable) |
| Detection Angle | ≤120° |
| Delay Time | 5 seconds - 5 minutes |
| Operating Temperature | -15°C to 70°C |
| Size | 32mm x 24mm x 25mm |
Rs.200.00
Pickup available at Robostan
Usually ready in 24 hours
HC-SR501 PIR Motion Sensor Module
The HC-SR501 PIR Motion Sensor Module is a popular motion detection module that uses passive infrared (PIR) technology to detect human or animal presence. Its versatility, reliability, and ease of use make it an essential component for security systems, automatic lighting, and DIY projects.
Key Features
- Wide Operating Voltage: Compatible with 4.5V to 20V power supplies.
- Adjustable Sensitivity: Fine-tune the detection range up to 7 meters.
- Adjustable Delay Time: Configure the delay time from 5 seconds to 5 minutes.
- Wide Detection Angle: Covers up to 120° for broader coverage.
- Compact Design: Easy to integrate into any project.
- Low Power Consumption: Optimized for energy-efficient applications.
Applications
- Security Systems: Motion-triggered alarms and cameras.
- Automatic Lighting: Lights on/off based on motion detection.
- Smart Home Projects: Automated doorbells, curtains, and other devices.
- DIY Electronics: Ideal for Arduino, Raspberry Pi, and IoT projects.
Package Includes
- 1 x HC-SR501 PIR Motion Sensor Module
Why Buy from Robostan.pk?
- Original Products: High-quality PIR motion sensors.
- Affordable Pricing: Competitive prices across Pakistan.
- Fast Shipping: Reliable delivery nationwide.
- Expert Support: Guidance for setup and troubleshooting.
Technical Specifications
| Operating Voltage | 4.5V - 20V |
| Detection Distance | 3 - 7 meters (adjustable) |
| Detection Angle | ≤120° |
| Delay Time | 5 seconds - 5 minutes |
| Operating Temperature | -15°C to 70°C |
| Size | 32mm x 24mm x 25mm |
