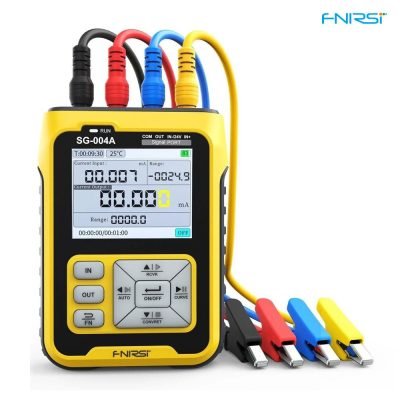

FR SG004A Multifunction Calibrator
FR SG004A Multifunction Calibrator
FR SG004A Multifunction Calibrator
The FR SG004A multifunction calibrator is designed for generating and measuring current, voltage, and frequency signals in industrial and automation systems. It’s widely used in instrumentation labs, PLC troubleshooting, sensor simulation, and process control system calibration.
With the ability to simulate 4-20mA, 0-10V, and various frequency signals, this tool replaces multiple devices in one compact, handheld unit. Its high-resolution display and intuitive interface make it suitable for engineers and technicians working in the field or in labs.
Why Choose Robostan.pk?
- ✅ Verified, Original Instruments
- Fast Nationwide Shipping
- Local Technical Support & Advice
- Affordable Pricing with No Middlemen
Price & Availability:
- Price: PKR 32500
- Availability: ✅ In Stock – Ships within 24 hours
Technical Specifications:
| Specification | Details |
|---|---|
| Model | FR SG004A |
| Functions | Source & Measure: mA, Voltage, Frequency |
| Current Output | 0-24mA (adjustable), 4-20mA standard |
| Voltage Output | 0-10V adjustable |
| Frequency Output | 1Hz – 10kHz |
| Display | High-contrast LCD Display |
| Loop Power Supply | 24V DC |
| Power Supply | Rechargeable Battery / USB Powered |
| Use Cases | PLC Calibration, Sensor Simulation, Industrial Signal Testing |
| Included Accessories | Test Leads, Charging Cable, Manual |
