FR DSO510 10MHz 2 in 1 Single Channel Oscilloscope
FR DSO510 10MHz 2 in 1 Single Channel Oscilloscope

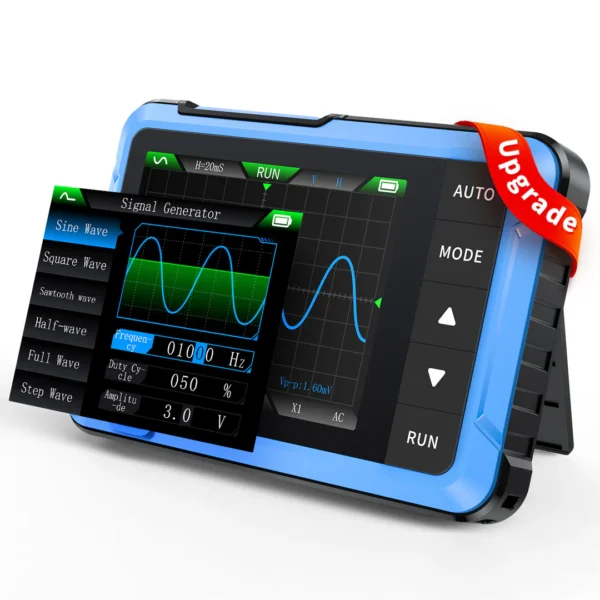

The FR DSO510 is a compact single-channel digital oscilloscope with an integrated signal/function generator. It is designed for electronics testing, repair, embedded development, education, and portable field diagnostics.
Technical Specifications:
| Channels | 1 |
| Bandwidth | 10MHz |
| Sampling Rate | 50MSa/s |
| Display | 2.4-inch Color LCD |
| Signal Generator | Built-in Function Generator |
| Signal Output | Up to 1MHz |
| Vertical Sensitivity | 10mV/div – 5V/div |
| Time Base | 10µs/div – 500s/div |
| Trigger Modes | Auto / Normal / Single |
| Power | Rechargeable / USB |
| Accessories | Probe, signal cable, USB cable, manual |
