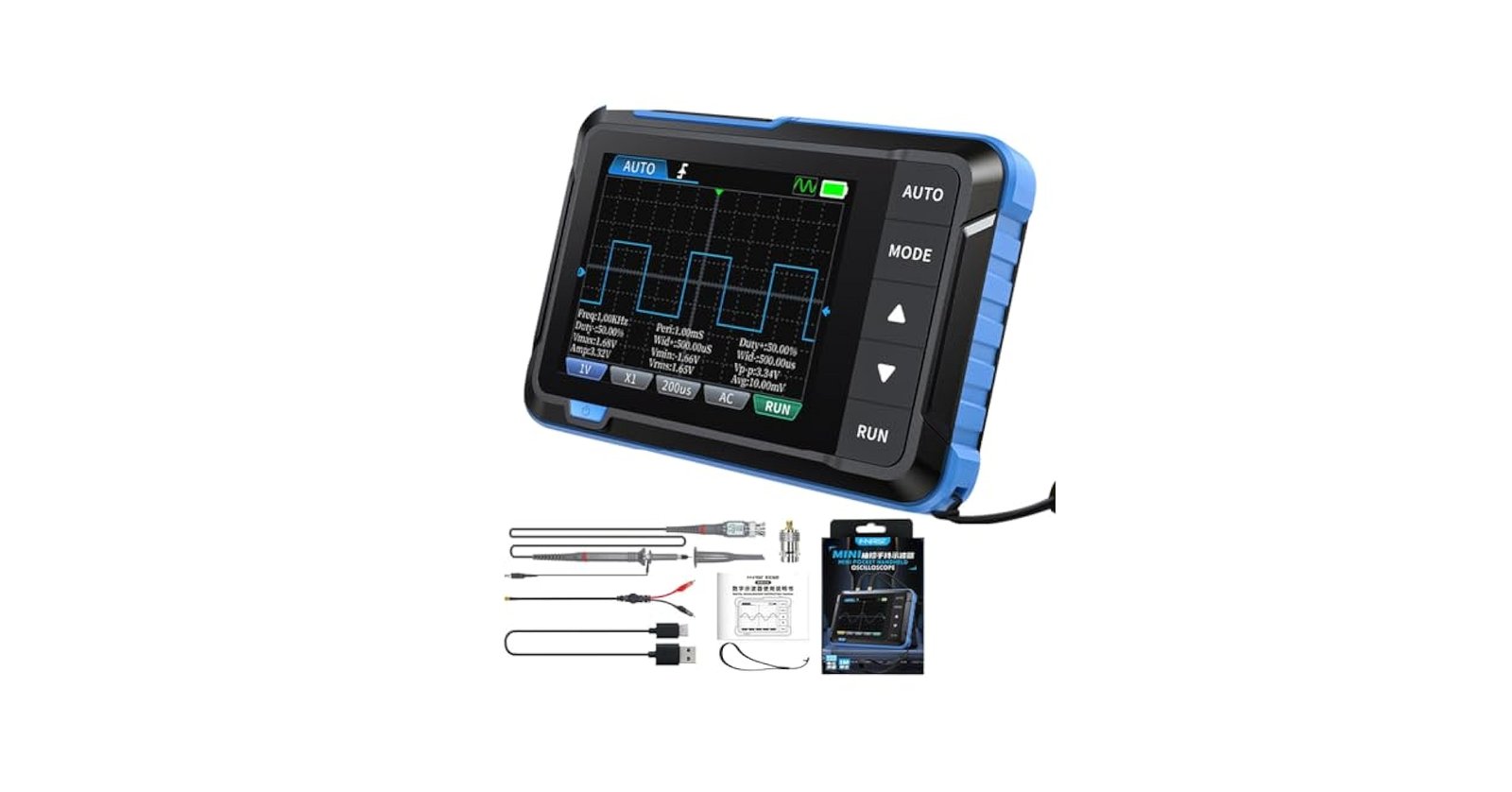

FR DSO153 1MHz SINGLE CHANNEL OSCILLOSCOPE
Rs.9,500.00
Skip to product information
FR DSO153 1MHz SINGLE CHANNEL OSCILLOSCOPE
FR DSO153 1MHz Single Channel Oscilloscope
The FR DSO153 is a portable single-channel digital oscilloscope suitable for students, hobbyists, embedded development, electronics testing, and field diagnostics.
Technical Specifications:
| Channels | 1 |
| Bandwidth | 1MHz |
| Sampling Rate | 500kSa/s |
| Display | 2.4-inch LCD |
| Vertical Sensitivity | 10mV/div – 5V/div |
| Time Base | 10µs/div – 500s/div |
| Trigger Modes | Auto / Normal / Single |
| Power | USB Rechargeable |
| Use Cases | Student, hobby, embedded electronics |
| Accessories | Probe, USB cable, manual |
Rs.9,500.00
Pickup available at Robostan
Usually ready in 24 hours
FR DSO153 1MHz Single Channel Oscilloscope
The FR DSO153 is a portable single-channel digital oscilloscope suitable for students, hobbyists, embedded development, electronics testing, and field diagnostics.
Technical Specifications:
| Channels | 1 |
| Bandwidth | 1MHz |
| Sampling Rate | 500kSa/s |
| Display | 2.4-inch LCD |
| Vertical Sensitivity | 10mV/div – 5V/div |
| Time Base | 10µs/div – 500s/div |
| Trigger Modes | Auto / Normal / Single |
| Power | USB Rechargeable |
| Use Cases | Student, hobby, embedded electronics |
| Accessories | Probe, USB cable, manual |
