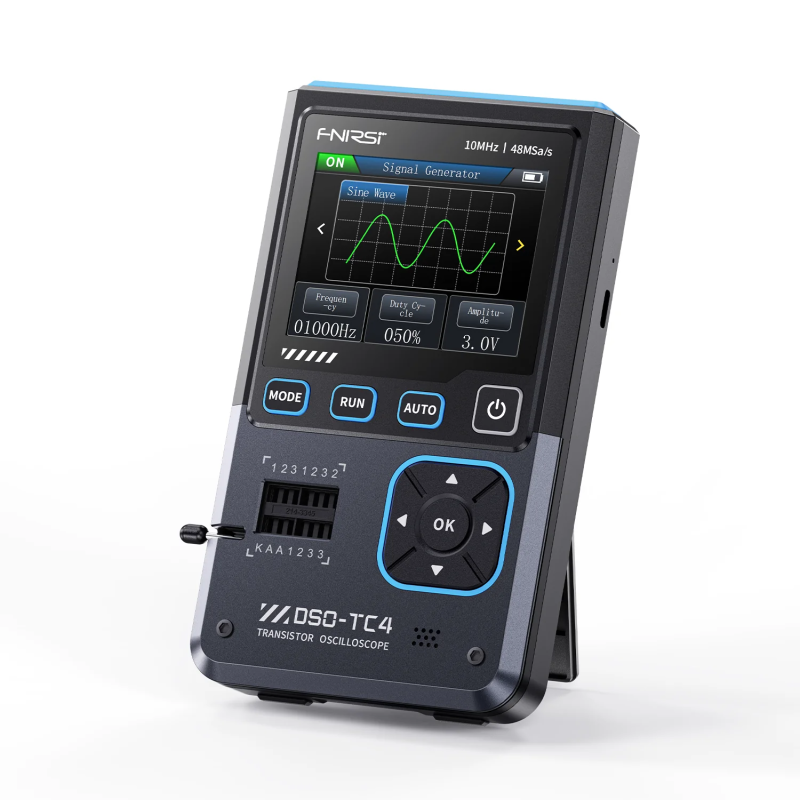

FR DSO TC4 Digital Oscilloscope
Rs.13,800.00
Skip to product information
FR DSO TC4 Digital Oscilloscope
FR DSO TC4 Digital Oscilloscope
The FR DSO TC4 is a compact dual-channel digital oscilloscope designed for embedded electronics, microcontroller projects, signal monitoring, electronics testing, and portable diagnostics.
Technical Specifications:
| Channels | 2 |
| Bandwidth | 10MHz typical |
| Sampling Rate | Up to 100MSa/s |
| Display | Color TFT |
| Trigger Modes | Auto / Normal / Single |
| Time Base | 50ns/div – 10s/div |
| Vertical Sensitivity | 10mV/div – 5V/div |
| Input Impedance | 1MΩ |
| Power | USB 5V |
| Applications | Embedded electronics, MCU projects, signal monitoring |
| Accessories | 2 probes, USB cable, manual |
Rs.13,800.00
Pickup available at Robostan
Usually ready in 24 hours
FR DSO TC4 Digital Oscilloscope
The FR DSO TC4 is a compact dual-channel digital oscilloscope designed for embedded electronics, microcontroller projects, signal monitoring, electronics testing, and portable diagnostics.
Technical Specifications:
| Channels | 2 |
| Bandwidth | 10MHz typical |
| Sampling Rate | Up to 100MSa/s |
| Display | Color TFT |
| Trigger Modes | Auto / Normal / Single |
| Time Base | 50ns/div – 10s/div |
| Vertical Sensitivity | 10mV/div – 5V/div |
| Input Impedance | 1MΩ |
| Power | USB 5V |
| Applications | Embedded electronics, MCU projects, signal monitoring |
| Accessories | 2 probes, USB cable, manual |
