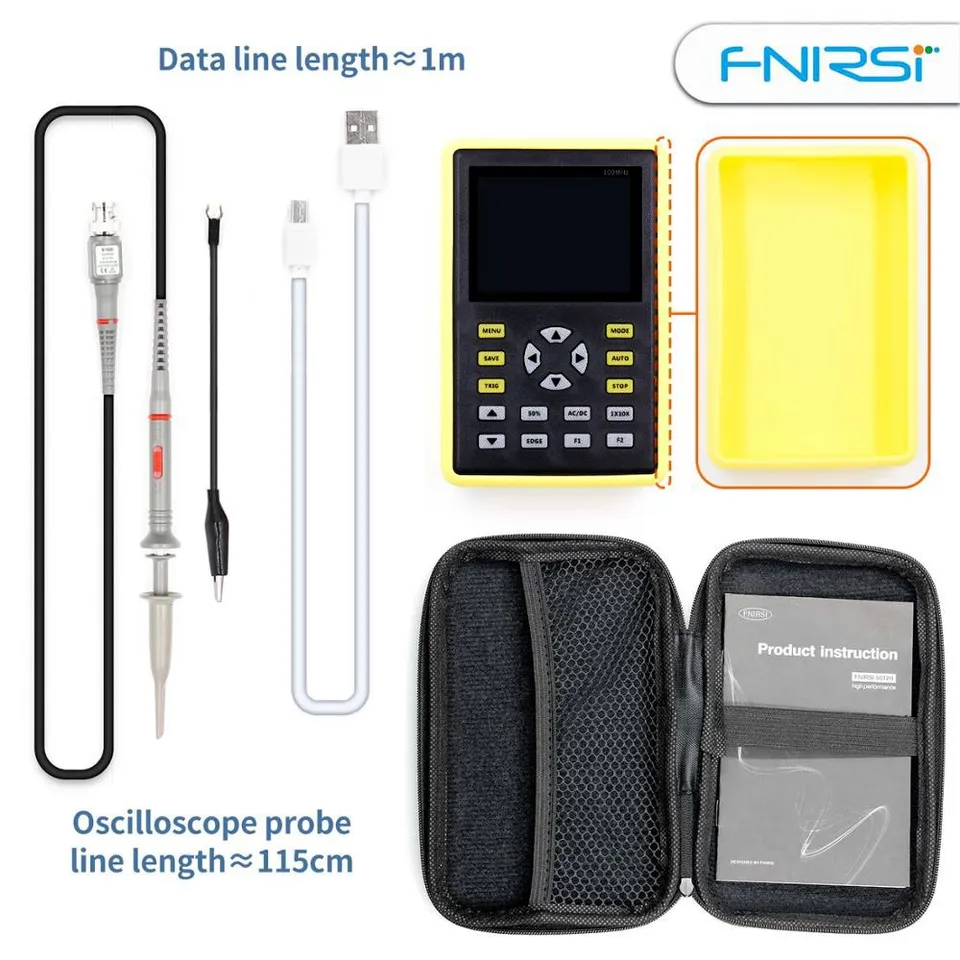

FR 5012H 100MHz SINGLE CHANNEL OSCILLOSCOPE
Rs.21,000.00
Skip to product information
FR 5012H 100MHz SINGLE CHANNEL OSCILLOSCOPE
FR 5012H 100MHz Single Channel Oscilloscope
The FR 5012H is a portable high-bandwidth single-channel digital oscilloscope designed for electronics repair, field diagnostics, embedded development, and laboratory testing.
Technical Specifications:
| Channels | 1 |
| Bandwidth | 100MHz |
| Sampling Rate | Up to 500MSa/s |
| Display | 2.4/2.8-inch TFT depending on batch |
| Vertical Sensitivity | 5mV/div – 10V/div |
| Time Base | 10ns/div – 500s/div |
| Trigger Modes | Auto / Normal / Single |
| Memory Depth | Up to 512Kpts |
| Power | Rechargeable / USB |
| Applications | Field, lab, electronics repair |
| Accessories | Probe, USB cable, guide |
Rs.21,000.00
Pickup available at Robostan
Usually ready in 24 hours
FR 5012H 100MHz Single Channel Oscilloscope
The FR 5012H is a portable high-bandwidth single-channel digital oscilloscope designed for electronics repair, field diagnostics, embedded development, and laboratory testing.
Technical Specifications:
| Channels | 1 |
| Bandwidth | 100MHz |
| Sampling Rate | Up to 500MSa/s |
| Display | 2.4/2.8-inch TFT depending on batch |
| Vertical Sensitivity | 5mV/div – 10V/div |
| Time Base | 10ns/div – 500s/div |
| Trigger Modes | Auto / Normal / Single |
| Memory Depth | Up to 512Kpts |
| Power | Rechargeable / USB |
| Applications | Field, lab, electronics repair |
| Accessories | Probe, USB cable, guide |
