FR 1014D 100MHz 2 CHANNEL OSCILLOSCOPE

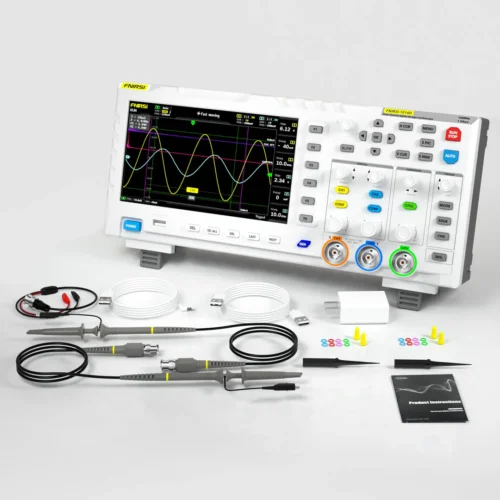

FR 1014D 100MHz 2 Channel Oscilloscope
The FR 1014D is a dual-channel digital oscilloscope designed for electronics development, repair, embedded systems, laboratory work, and quality testing.
Technical Specifications:
| Bandwidth | 100MHz |
| Channels | 2 |
| Sampling Rate | 1GSa/s real-time |
| Display | 7-inch TFT |
| Memory Depth | 40Kpts – 1Mpts depending on mode |
| Time Base | 2ns/div – 1000s/div |
| Vertical Sensitivity | 2mV/div – 10V/div |
| Trigger Modes | Auto, Normal, Single, Edge, Pulse, Video, Slope |
| Math Functions | Add, Subtract, Multiply, FFT |
| Connectivity | USB / LAN / Storage support |
| Power | 220V AC |
| Applications | R&D, repair, embedded electronics, QA |
| Accessories | 2 probes, power cable, USB cable, manual |
