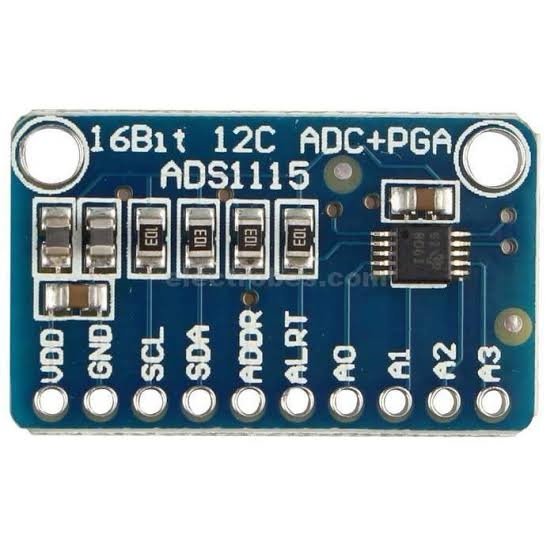

ADS1115 16-Bit ADC 4 Channel Module
The ADS1115 16-Bit ADC 4 Channel Module is a high-precision analog-to-digital converter designed for accurate measurement of analog signals. With its programmable gain amplifier (PGA) and I²C interface, it is ideal for sensors, data acquisition and embedded systems.
Key Features
- 16-bit analog-to-digital conversion
- 4 single-ended or 2 differential channels
- Programmable gain amplifier
- I²C interface
- Low power consumption
Applications
- Sensor data acquisition
- Signal processing and monitoring
- Industrial automation systems
- Battery monitoring
Technical Specifications
| Resolution | 16-bit (±0.003V resolution) |
| Channels | 4 single-ended or 2 differential |
| Input Voltage Range | ±0.256V to ±6.144V (configurable) |
| Supply Voltage | 2.0V to 5.5V |
| Data Rate | Up to 860 samples/sec |
| Interface | I²C |
| Dimensions | 28mm x 12mm |
