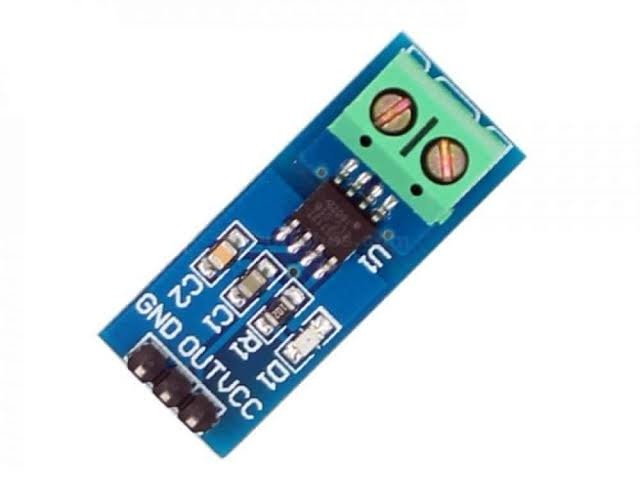

ACS712 5A Range Current Sensor
ACS712 5A Range Current Sensor
The ACS712 5A Range Current Sensor is a versatile and precise module designed to measure AC and DC currents up to 5A. It operates using the Hall effect principle, providing accurate readings while maintaining electrical isolation. This sensor is suitable for Arduino, Raspberry Pi and other microcontroller projects involving current measurement, motor control or energy monitoring.
Applications
- Battery monitoring
- Motor control systems
- Power supply monitoring
- Energy management systems
- Overcurrent protection circuits
Technical Specifications
| Current Measurement Range | ±5A |
| Operating Voltage | 5V |
| Output Type | Analog (2.5V at 0 current) |
| Sensitivity | 185mV/A |
| Size | 31mm x 13mm |
| Isolation Voltage | 2100V RMS |
Rs.300.00
Pickup available at Robostan
Usually ready in 24 hours
ACS712 5A Range Current Sensor
The ACS712 5A Range Current Sensor is a versatile and precise module designed to measure AC and DC currents up to 5A. It operates using the Hall effect principle, providing accurate readings while maintaining electrical isolation. This sensor is suitable for Arduino, Raspberry Pi and other microcontroller projects involving current measurement, motor control or energy monitoring.
Applications
- Battery monitoring
- Motor control systems
- Power supply monitoring
- Energy management systems
- Overcurrent protection circuits
Technical Specifications
| Current Measurement Range | ±5A |
| Operating Voltage | 5V |
| Output Type | Analog (2.5V at 0 current) |
| Sensitivity | 185mV/A |
| Size | 31mm x 13mm |
| Isolation Voltage | 2100V RMS |
