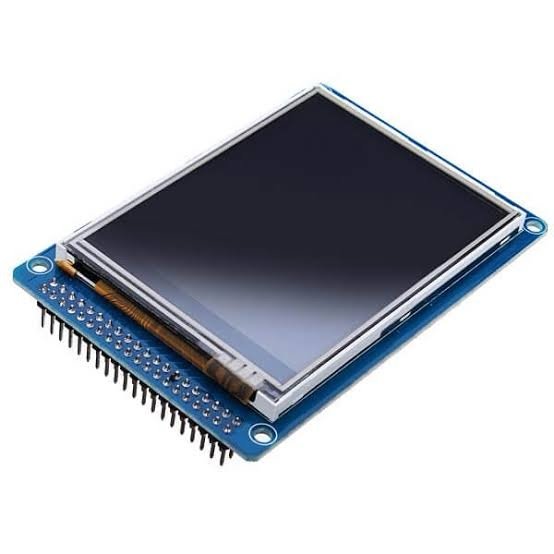

Name: 3.2 Inches TFT LCD Display for Arduino
Brand: Robostan.pk
Price: 4200.00 PKR
Availability: InStock

3.2 Inches TFT LCD Display for Arduino

The 3.2 Inches TFT LCD Display for Arduino with 262 K color 480 x 320 resolutions.The controller of this LCD module is HX8357B, it supports 16-wires Data Bus interface.Moreover, this module includes the 5 V-3.3 V power conversion circuit and Level conversion circuit, This Module can Directly inserted into the Arduino Mega2560 Board ,it also includes the SD card socket and SPI FLASH circuit.

Features:

Support Arduino Mega2560 Directly inserted
With Full-angle IPS TFT panel
OnBorad level conversion chip for 5V/3.3V MCU
Compatible with 3.3/5V operation voltage level
Compatible with Arduino-Series development Board.
(Please notice:This Screen is not touch screen)
Provided 12-examples with Arduino ,3-examples with STM-32
With SD Card Socket
With SPI FLASH circuit

Features:

Support Arduino Mega2560 Directly inserted
With Full-angle IPS TFT panel
OnBorad level conversion chip for 5V/3.3V MCU
Compatible with 3.3/5 V operation voltage level
Compatible with Arduino-Series development Board.
(Please notice:This Screen is not touch screen)
Provided 12-examples with Arduino ,3-examples with STM32
With SD Card Socket
With SPI FLASH circuit

Rs.4,200.00

Pickup available at Robostan

Usually ready in 24 hours
