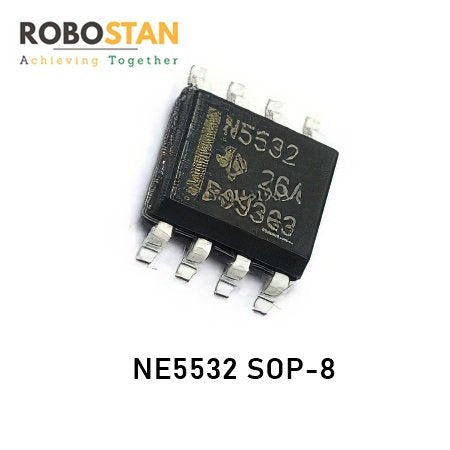

NE5532 SOP-8
NE5532 SOP-8
The NE5532 SOP-8 is a dual low-noise operational amplifier designed for audio and signal-processing applications. It offers low distortion, wide bandwidth and strong noise performance in a compact surface-mount SOP-8 package, making it suitable for audio preamplifiers, equalizers and other high-fidelity analog circuits.
Technical Specifications
| Type | Dual Low-Noise Operational Amplifier |
| Supply Voltage | ±3V to ±18V |
| Input Offset Voltage | 0.5mV typical |
| Slew Rate | 9V/µs |
| Gain Bandwidth Product | 10MHz |
| Noise Density | 5nV/√Hz typical |
| Package | SOP-8 |
Pickup available at Robostan
Usually ready in 24 hours
The NE5532 SOP-8 is a dual low-noise operational amplifier designed for audio and signal-processing applications. It offers low distortion, wide bandwidth and strong noise performance in a compact surface-mount SOP-8 package, making it suitable for audio preamplifiers, equalizers and other high-fidelity analog circuits.
Technical Specifications
| Type | Dual Low-Noise Operational Amplifier |
| Supply Voltage | ±3V to ±18V |
| Input Offset Voltage | 0.5mV typical |
| Slew Rate | 9V/µs |
| Gain Bandwidth Product | 10MHz |
| Noise Density | 5nV/√Hz typical |
| Package | SOP-8 |
