LM2904P DIP-8
Rs.60.00
Skip to product information

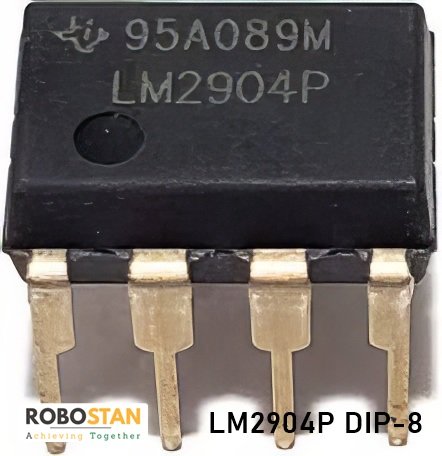

LM2904P DIP-8
The LM2904P DIP-8 is a dual operational amplifier IC for amplifiers, active filters, oscillators and signal-conditioning circuits. Its DIP-8 package supports conventional through-hole PCB designs.
Technical Specifications
- Type: Dual Operational Amplifier IC
- Supply Voltage: 3V to 32V single supply; ±1.5V to ±16V dual supply
- Input Offset Voltage: 2mV typical
- Slew Rate: 0.3V/µs
- Gain Bandwidth Product: 1MHz
- Input Bias Current: 20nA typical
- Package: DIP-8
Rs.60.00
Pickup available at Robostan
Usually ready in 24 hours
The LM2904P DIP-8 is a dual operational amplifier IC for amplifiers, active filters, oscillators and signal-conditioning circuits. Its DIP-8 package supports conventional through-hole PCB designs.
Technical Specifications
- Type: Dual Operational Amplifier IC
- Supply Voltage: 3V to 32V single supply; ±1.5V to ±16V dual supply
- Input Offset Voltage: 2mV typical
- Slew Rate: 0.3V/µs
- Gain Bandwidth Product: 1MHz
- Input Bias Current: 20nA typical
- Package: DIP-8
