Ds18b20 water proof
Ds18b20 water proof
Ds18b20 water proof

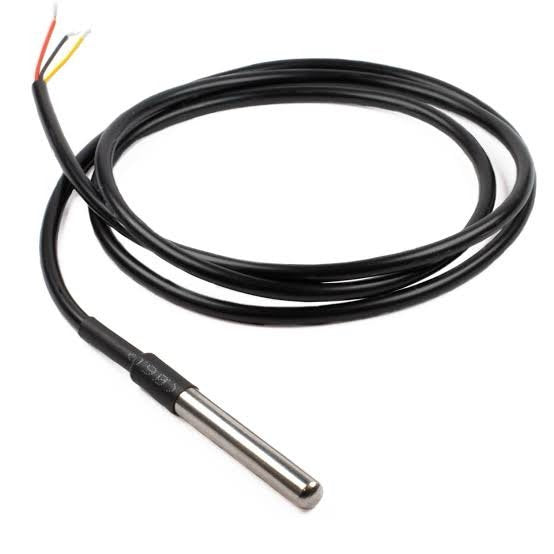

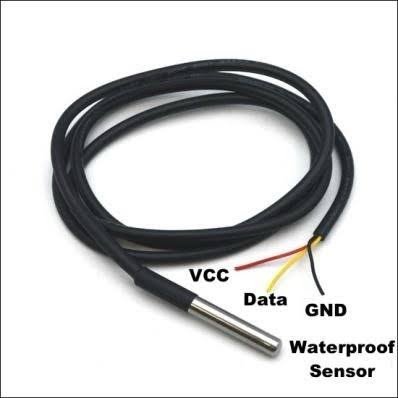

Ds18b20 water proof is a pre-wired and waterproofed version of the DS18B20 sensor. Handy for when you need to measure something far away, or in wet conditions. While the sensor is good up to 125°C the cable is jacketed in PVC so we suggest keeping it under 100°C.
Because Ds18b20 water proof are digital, you don't get any signal degradation even over long distances! These 1-wire digital temperature sensors are fairly precise (±0.5°C over much of the range) and can give up to 12 bits of precision from the on board digital-to-analog converter.
They work great with any micro-controller using a single digital pin, and you can even connect multiple ones to the same pin, each one has a unique 64-bit ID burned in at the factory to differentiate them. Usable with 3.0-5.0 V systems.
Technical Specifications
- Temperature Range: -55°C to +125°C
- Accuracy: ±0.5°C (from -10°C to +85°C)
- Resolution: 9 to 12 bits (programmable)
- Power Supply: 3V to 5.5V
- Interface: 1-Wire
- Operating Current: 1.5mA (active), 750µA (idle)
- Data Conversion Time: 750ms (for 12-bit resolution)
- Waterproof Housing: Stainless steel probe, IP67 rating
- Cable Length: Typically 1 meter, customizable
- Applications: Aquariums, water tanks, soil monitoring, outdoor weather stations, industrial equipment
- Operating Temperature: -55°C to +125°C
Pickup available at Robostan
Usually ready in 24 hours
Ds18b20 water proof
Ds18b20 water proof is a pre-wired and waterproofed version of the DS18B20 sensor. Handy for when you need to measure something far away, or in wet conditions. While the sensor is good up to 125°C the cable is jacketed in PVC so we suggest keeping it under 100°C.
Because Ds18b20 water proof are digital, you don't get any signal degradation even over long distances! These 1-wire digital temperature sensors are fairly precise (±0.5°C over much of the range) and can give up to 12 bits of precision from the on board digital-to-analog converter.
They work great with any micro-controller using a single digital pin, and you can even connect multiple ones to the same pin, each one has a unique 64-bit ID burned in at the factory to differentiate them. Usable with 3.0-5.0 V systems.
Technical Specifications
- Temperature Range: -55°C to +125°C
- Accuracy: ±0.5°C (from -10°C to +85°C)
- Resolution: 9 to 12 bits (programmable)
- Power Supply: 3V to 5.5V
- Interface: 1-Wire
- Operating Current: 1.5mA (active), 750µA (idle)
- Data Conversion Time: 750ms (for 12-bit resolution)
- Waterproof Housing: Stainless steel probe, IP67 rating
- Cable Length: Typically 1 meter, customizable
- Applications: Aquariums, water tanks, soil monitoring, outdoor weather stations, industrial equipment
- Operating Temperature: -55°C to +125°C
